GT3584R GEN II Reverse 10+0 Blades Point Milling 67.30/84.44mm Turbo Milling/aluminum 2618/billet Compressor Wheel

1.Model:GT3584R GEN II REVERSE

2.GT3584R reverse GEN II 10+0 blades 67.30/84.44mm Point milling turbo billet/milling/aluminum 2618 compressor wheel
3.Size:

Nose diameter:18.85mm

Inducer:67.30mm

Exducer:84.44mm

Tapered tip exudcer:87.26mm

Tip height:6.79mm

Superback:2.36mm

Overall height:38.62mm

Bore size:6.35mm

bore type:through

Trailing angle:35 degree

Cutback:6.5mm

SP height angle:0.00

Splitter height:0.00

Blade height:31.90mm

10+0 blades

reverse rotation

Tapered tip angle:13.6 degree

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

We can produce as your requirements.

All the compressor wheels have been balanced

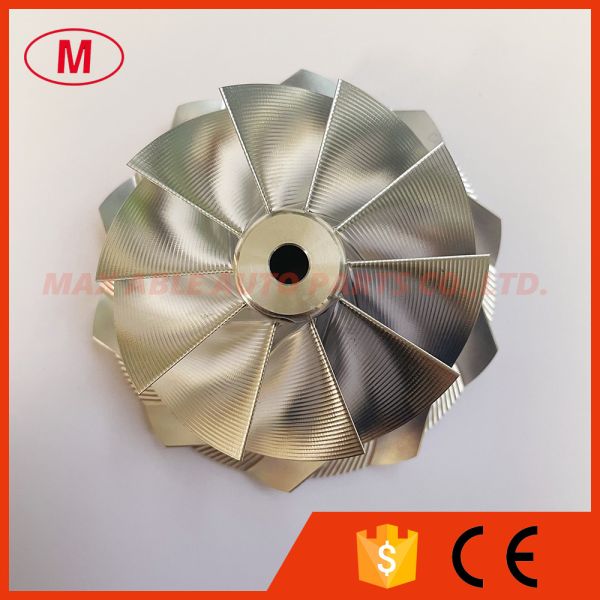

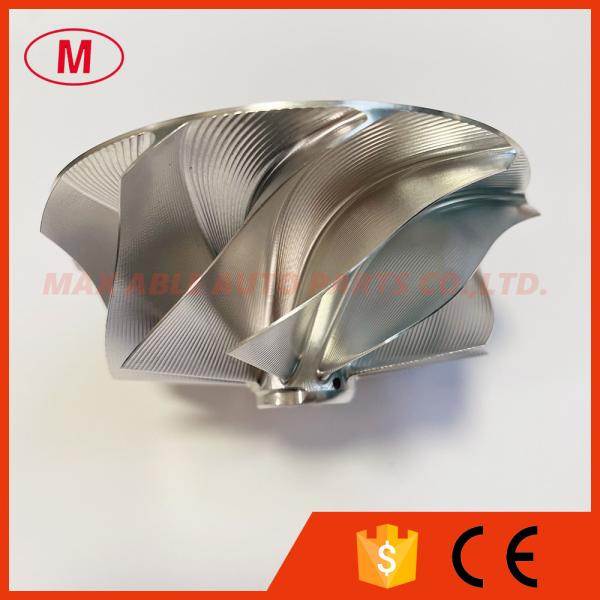

GT3584R GEN II Reverse 10+0 Blades Point Milling 67.30/84.44mm Turbo Milling/aluminum 2618/billet Compressor Wheel Images
